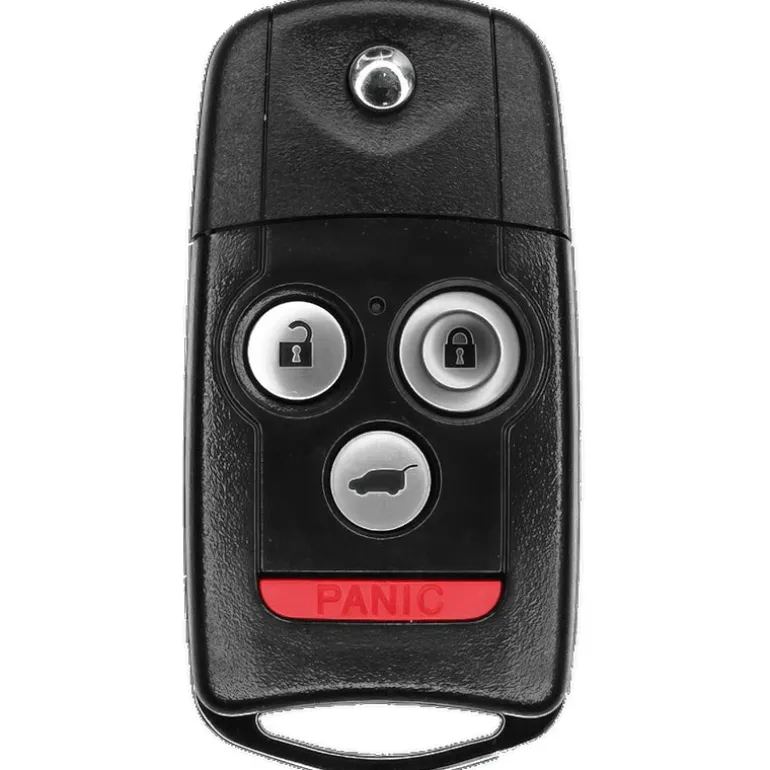

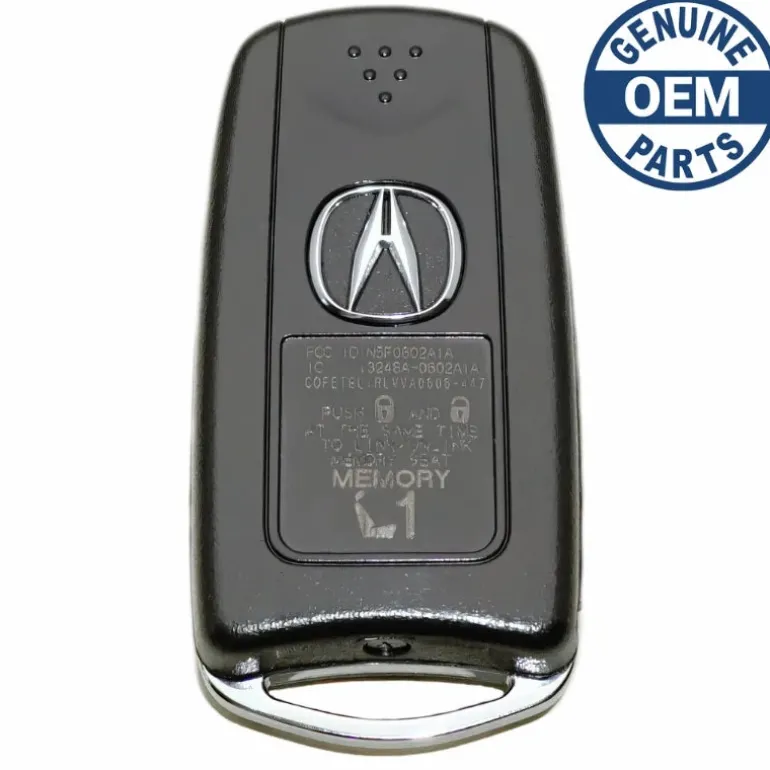

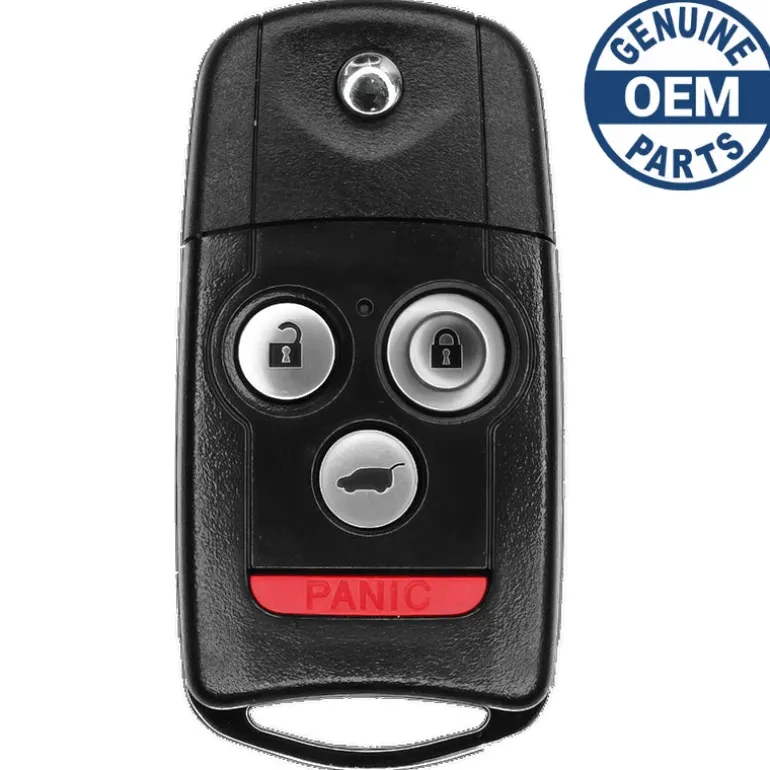

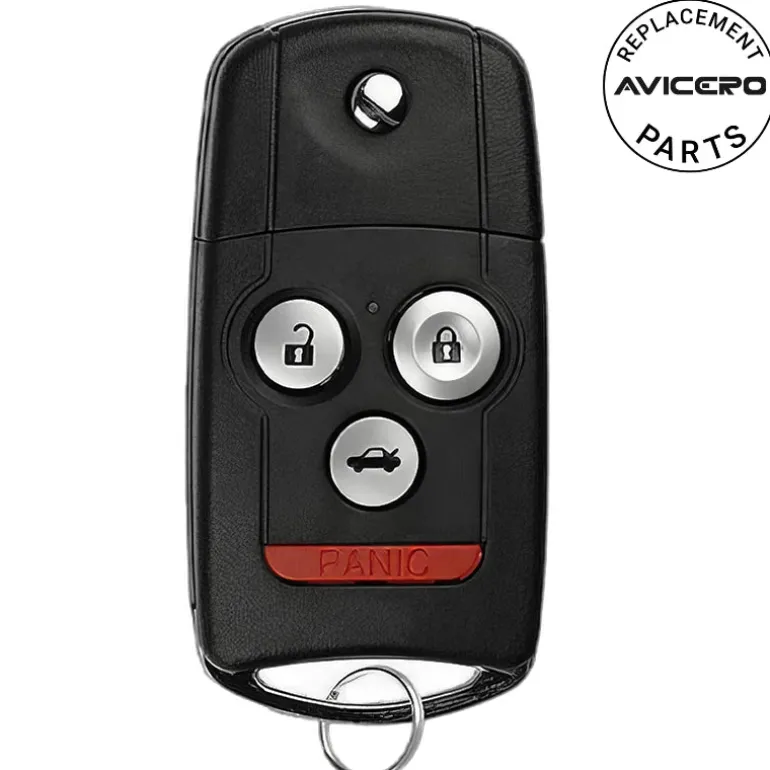

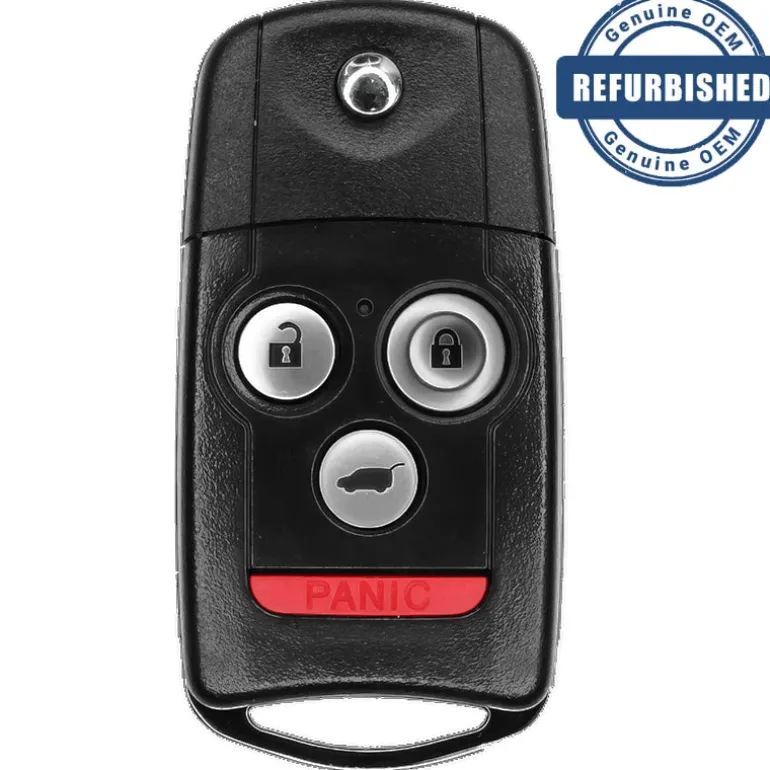

2011 Acura MDX FlipKey Remote PN: 35111-STX-326, 35111-STX-329 FCC ID: N5F0602A1A

Important:Please make sure that your flipkey remote looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: 35111-STX-326 and 35111-STX-316

FCC ID: N5F0602AIA

Buttons: Lock, Unlock, Hatch, and Panic

Frequency: 314 MHz

Remote Programming:

Transponder Programming:

Chip ID: PHILIPS ID 46

Battery: CR1616 (included)

Flipkey Blade:

(included)

Keyless Entry Remote Programming:

IMPORTANT: Entering the programming mode cancels all learned remote codes, so no previously programmed remotes will work. You must program all remotes, including existing ones now. Separate your ignition key from remotes on keychain.

1. Start with your key in your right hand and any remote in your left hand. Keep all additional remotes easily accessible to your left hand. Insert the key into the ignition.
2. Perform these steps within 5 seconds.
1. Turn the ignition to the ON position (where the instrument panel lights are turned on without starting the engine.)
2. Press the UNLOCK button on the remote and release.
3. Turn the ignition back to LOCK (the position where the key is inserted) and leave the key in the ignition.
4. Turn the ignition to the ON position (where the instrument panel lights are turned on without starting the engine.)
5. Press the UNLOCK button on the remote and release.
6. Turn the ignition back to LOCK (the position where the key is inserted) and leave the key in the ignition.
7. Turn the ignition to the ON position (where the instrument panel lights are turned on without starting the engine.)
8. Press the UNLOCK button on the remote and release.
9. Turn the ignition back to LOCK (the position where the key is inserted) and leave the key in the ignition.
3. Within 5 seconds turn the ignition to ON.
4. Press the UNLOCK button on the same remote and release. The power door locks will cycle to confirm the system is in programming mode.
5. Within 10 seconds press the UNLOCK button on the same remote again and release. The door locks will cycle to confirm that the system accepted this remote.
6. Repeat step 5 for second or third remotes.
7. Turn the key back to LOCK and remove from ignition to exit programming mode.

Transponder Key Programming:

Use the websites below or your local yellow pages to locate a local automotive locksmith.

An automotive locksmith will cut the key and program your vehicle to start with new keys by hooking up an expensive scan tool to your vehicle, making the vehicle learn the new transponder chip.
